KONTRON 986LCD-M/FLEX (for Core Duo/Core Single)

PRODUCT IS CURRENTLY NOT AVAILABLE !
KONTRON 986LCD-M/FLEX (for Core Duo/Core Single)

Unused. New.

Scope of supply:

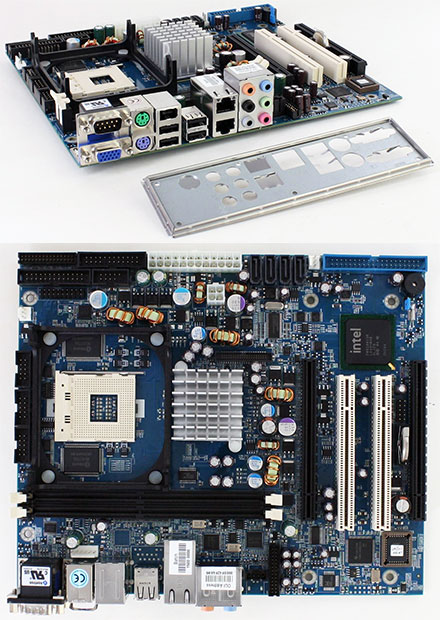

- Kontron 986LCD-M/FLEX Mainboard (with I/O shield)

Form Factor Flex-ATX
Dimensions (H x W x D) 9" x 7,5", 22,86 cm x 19,05 cm
CPU Supports:
Intel® Celeron® M, Intel® Core™ Solo, Intel® Core™ Duo & Intel® Core™2 Duo Processors (mPGA478); Prepared for mBGA479
Intel® Celero™n M Processor 440, 1.86GHz, 27W
Intel® Core™ Duo Processor T2500, 2,00GHz,dual Core, 31W
Intel® Core™ 2 Duo Processor T7400, 2.16GHz, dual Core, 34W
Chipset Intel 945GM
ICH7R
Main Memory up to 3 GByte DDR2 240pin DIMM (max 1x 1GB + 1x 2GB)
Front Side Bus 533/667Mhz
Graphics Controller Intel® GMA950 Controller with [more]
Share

489.00 EUR
incl. 19% VAT, plus shipping
Product currently unavailable. We check availability again when ordering.
Add to cart
RAM :

SSD (2.5"):

Build/Install:

Unused. New.

Scope of supply:
- Kontron 986LCD-M/FLEX Mainboard (with I/O shield)

Form Factor Flex-ATX
Dimensions (H x W x D) 9" x 7,5", 22,86 cm x 19,05 cm
CPU Supports:
Intel® Celeron® M, Intel® Core™ Solo, Intel® Core™ Duo & Intel® Core™2 Duo Processors (mPGA478); Prepared for mBGA479
Intel® Celero™n M Processor 440, 1.86GHz, 27W
Intel® Core™ Duo Processor T2500, 2,00GHz,dual Core, 31W
Intel® Core™ 2 Duo Processor T7400, 2.16GHz, dual Core, 34W
Chipset Intel 945GM
ICH7R
Main Memory up to 3 GByte DDR2 240pin DIMM (max 1x 1GB + 1x 2GB)
Front Side Bus 533/667Mhz
Graphics Controller Intel® GMA950 Controller with 2D/3D Graphics Engine
HW assisted DVD/MPEG2 Decoding
Graphics On board CRT, on board Dual Channel LVDS
Dual Pipe for dual independent displays (incl. 2x LCD)
Use ADD2-LVDS
(PCI-Express x 16/SDVO), Optional SVideo/TV
Ethernet Controller Realtek RTL8111B
Ethernet 2x 10/100/1000 Mbps
Hard Disk 4x SATAII 150/300 w. RAID 0,1,5,10 support
Parallel Port 1x ATA100 (2.54 mm connector)
Thru LPT
Flash Onboard n/a
PCI 2x PCI
PCI Express / PCI support 1x PCIe x16 / SDVO for external graphics card or ADD2 cards
1x PCIe x4 (in a x16 slot)
Mini-PCI n/a
USB 8x USB 2.0
(4x internal and 4x external)
IEEE 1394 Firewire 2x IEEE 1394
1x Internal and 1x External
Audio Controller Realtek ALC882
7.1& 7.2CH HD
Keyboard Standard PS/2 mouse and keyboard (internal connection available)
Special Features Hardware Monitor: Temperature, fan and voltages
Software interface to monitor hardware values including HDD S.M.A.R.T.
Watchdog
On board Lithium battery and external battery input
BIOS AMI
Power Management ACPI 3.0
Operation Temperature 0 - 60°C (32°F - 140°F)

Data sheet Download (PDF)
Data sheet Print view
